High-end Dynamic Balancing Machine Instrumentation

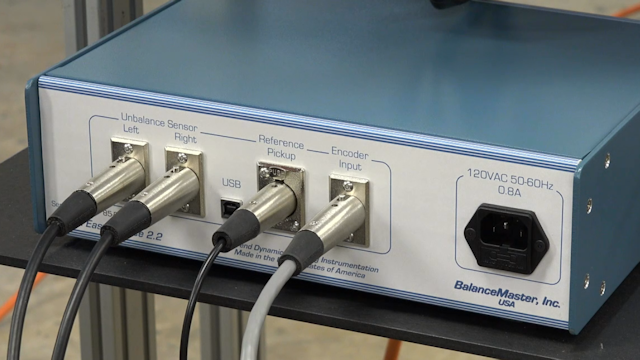

Front panel view Rear panel view	The leading edge of dynamic balancing technology New life and top performance for any balancing machine, instant productivity and performance increase 10-year warranty Ultra-linear circuitry Ultra-low noise amplifier Automatic calibration mode Automatic plane separation optimization Digitally controlled gain network Advanced specialized auto-tune filter, combining zero-phase error band-pass with advanced wattmetric filter technology capable of retrieving even the smallest unbalance signals, buried under several magnitudes of signal noise. Over 120 dB signal range Intelligent Encoder data acquisition Complete ARP4048 Test and Certification capability included Superior suppression of extraneous and noisy signals Compatible with IRD, Schenck, Hines, Stewart Warner, Hofmann, CEMB and others Print-to-paper or Print-to-file (paperless) print reports Automatic calibration routine (click and calibrate) Teach mode (Rotor-specific calibration) Precise, repeatable results Highly advanced balancing instrumentation circuitry SAE test certifiable Designed for the most demanding dynamic balancing machine applications Upgrade and modernize any balancing machine, regardless of brand or age Completely replaces the existing measuring system *EasyBalance 2.2* high-end two-channel balancing electronics *EasyBalance* high-end dynamic balancing software for Windows (Windows 7, Windows Vista, Windows XP, 32 and 64 bit) Standard version 100 to 10,000 RPM speed range Available in low-speed version (50 to 5,000 RPM) Available in ultra-low-speed version (6 to 200 RPM) Available in high-speed version (500 to 50,000 RPM) Available in ultra-high-speed version (5,000 to 200,000 RPM) Easy to learn, easy to use, Point-and-click simplicity Compare features with Schenck CAB 690

High-sensitivity Balancing Machine, model HD-1
	Dynamic balancing machine for small high-speed rotors, gyroscopes and similar applications 500 to 50,000 RPM speed range, model HD-1, with EasyBalance 2.2 H The HD-1 hard-bearing balancing system is equipped with the new *EasyBalance 2.2 dynamic balancing instrumentation* Windows 7, Windows Vista, Windows XP, 32 and 64 bit Increased RPM range Ultra-linear circuitry. Ultra-low noise amplifier. Automatic calibration mode Automatic plane separation optimization Digitally controlled gain network. Advanced specialized auto-tune filter, combining zero-phase error bandpass with advanced wattmetric filter technology capable of retrieving even the smallest unbalance signals, buried under several magnitudes of signal noise. Over 120 dB signal range. Precise, repeatable results. Highly advanced balancing instrumentation circuitry. SAE test certifiable Superior balancing sensitivity: < 0.1 milligram mm (0.14 micro-ounce inch) < 0.0005 micron (micro-meter) < 0.00002 µ-inch (micro-inch)

Dynamic Balancing Systems
	Balancing machines for High-Speed Spindles and similar applications Superior sensitivity Precision hard-bearing technology Designed for demanding Turbo-molecular pumps, small turbines, and similar balancing applications Automatic Scan mode to monitor bearing run-in over time 500 to 50,000 (high speed range) or 5,000 to 200,000 RPM (ultra-high speed range) Simplified, low-cost tooling (cradle) Excellent linearity over wide RPM range Bode plot diagram during run-up Bode plot diagram during ramp-down

Desk-top Balancing Machines
	Balancing machines for small fans, blowers, and similar applications Equipped with the top-of-the-line *EasyBalance 2.2* dynamic balancing instrumentation system High-output piezo-electric force sensor design Variable speed drive Excellent linearity over wide RPM range 1-plane or 2-plane models Remote angle indicator (electronic protractor) Superior sensitivity Balancing reports and automatic balancing log (ISO 9001)

Dynamic Balancing Machines
	Dynamic single-plane or two-plane balancing machines Capacities from a few grams to 3,500 Kg (7,700 lbs) Sensitivity below 0.01 micro-meter ( 0.4 micro-inch ) Capacity for over 1 million rotor setup files Easy setup, "point-and-click" Extremely accurate and reliable piezo-electric force-measuring technology Hard-bearing, factory calibrated Variable speed drive comes standard Remote Angle indicator (Electronic protractor) comes standard Equipped with top-of-the-line EasyBalance 2.2 instrumentation

January 2010
